Understanding Carbide Dies Without Head: Design, Applications, and Benefits

In the world of precision manufacturing, carbide dies without head play a crucial role in shaping materials with unmatched accuracy and durability. But what exactly are they, and why are they essential in industrial applications? Let’s explore the design, applications, and advantages of these specialized tools.

What Are Carbide Dies Without Head?

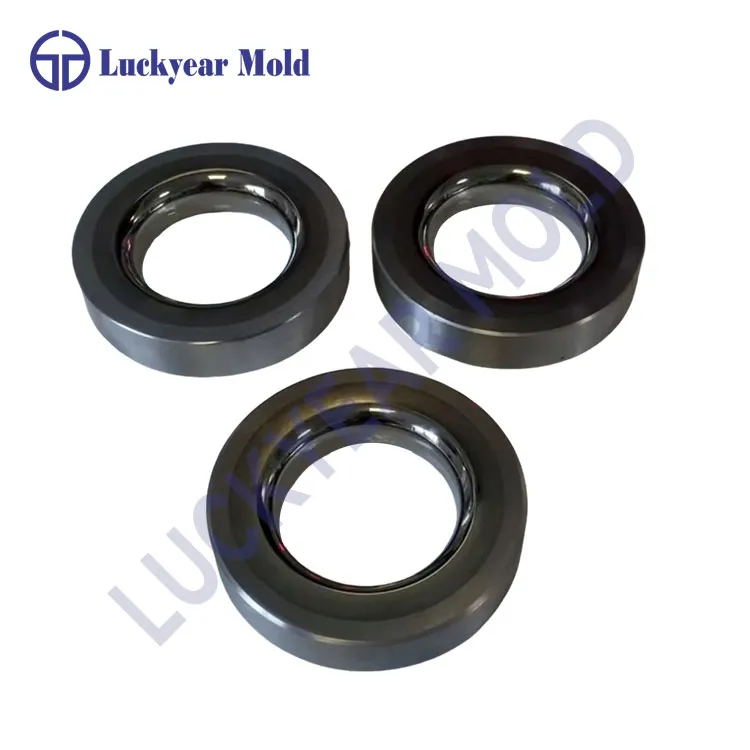

Carbide dies without head are cylindrical tools made primarily from tungsten carbide, a material known for its incredible hardness and wear resistance. Unlike traditional dies, these dies lack an extended “head” or flange, resulting in a simpler, more streamlined structure. This design is particularly suitable for specific forming, extrusion, or cutting processes.

Key Features of Carbide Dies Without Head

1. Material Strength

  - Made from tungsten carbide, these dies exhibit high compressive strength and exceptional wear resistance.

2. Streamlined Design

  - The absence of a head makes them ideal for applications requiring uniform pressure distribution.

3. Customizable Dimensions

  - Can be tailored to precise specifications, ensuring optimal performance for specific tasks.

4. Durability

  - Resistant to deformation, corrosion, and heat, even under extreme conditions.

Applications of Carbide Dies Without Head

1. Wire Drawing

  - Used in the manufacturing of wires by reducing the diameter of metal rods through extrusion.

2. Tube and Pipe Forming

  - Essential for shaping hollow materials like tubes and pipes in industries such as automotive and aerospace.

3. Metal Forming

  - Applied in processes like cold forging, where high pressure is used to shape metals without heating.

4. Powder Compaction

  - Utilized in creating dense components in the powder metallurgy industry.

5. Precision Cutting

  - Used in specialized cutting operations for materials requiring high dimensional accuracy.

Advantages of Using Carbide Dies Without Head

1. Improved Efficiency

  - The streamlined design allows for easy integration into various manufacturing systems.

2. Longevity

  - Carbide’s wear resistance ensures prolonged tool life, reducing replacement costs.

3. Cost-Effectiveness

  - Despite their higher initial cost, their durability and reliability result in long-term savings.

4. Versatility

  - Suitable for working with a variety of materials, including steel, aluminum, and composites.

5. Precision

  - Provides high dimensional accuracy, essential for industries demanding tight tolerances.

Carbide dies without head are indispensable in modern manufacturing, offering a blend of strength, durability, and precision. Their versatile applications make them a key component in industries ranging from automotive to aerospace. As technology advances, these tools will continue to evolve, enabling manufacturers to achieve higher efficiency and quality in production.
