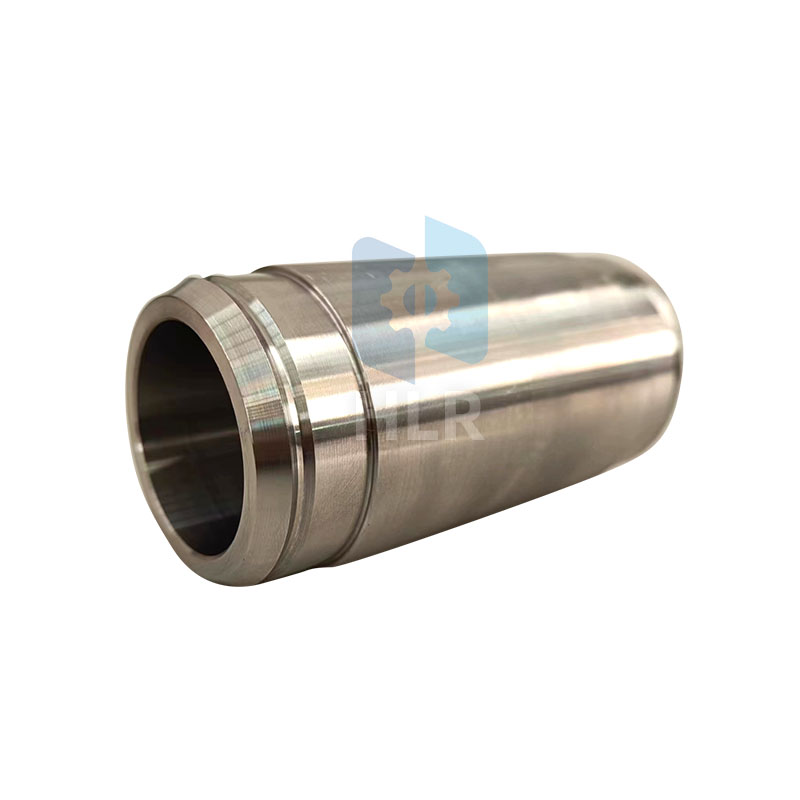

Overcoming Challenges: Engineering Solutions for Sealed Stainless Steel Cylinder Liners

In the realm of engine design, where precision and reliability are paramount, sealed stainless steel cylinder liners stand as a cornerstone of performance and durability. However, like any engineering component, they are not without their challenges and limitations. Engineers continually strive to address these challenges through innovative design solutions, ensuring that sealed stainless steel cylinder liners meet the rigorous demands of modern engines. Let's explore some typical challenges associated with sealed stainless steel cylinder liners and the engineering strategies employed to overcome them.

Thermal Expansion Mismatch

Challenge: Stainless steel cylinder liners and the engine block experience different rates of thermal expansion and contraction during operation. This thermal expansion mismatch can lead to dimensional instability, increased friction, and potential sealing issues.

Engineering Solution: Engineers address this challenge by carefully selecting stainless steel grades with thermal expansion coefficients closely matched to those of the engine block material. Additionally, design features such as thermal bridges and cooling channels help manage heat distribution and minimize thermal stress on cylinder liners.

Sealing Integrity

Challenge: Ensuring effective sealing between the cylinder liner and engine block is essential for maintaining compression, preventing fluid leakage, and minimizing emissions. However, achieving and maintaining a reliable seal can be challenging due to factors such as surface imperfections, thermal cycling, and mechanical stresses.

Engineering Solution: Advanced sealing mechanisms, such as elastomeric coatings, O-rings, and precision machining techniques, are employed to ensure tight and durable seals between the cylinder liner and engine block. Surface treatments and coatings enhance the surface finish of cylinder liners, reducing friction and promoting optimal sealing performance.

Wear and Abrasion

Challenge: The constant reciprocating motion of the piston against the cylinder liner can lead to wear, abrasion, and material loss over time. Excessive wear can compromise sealing integrity, increase friction, and reduce engine efficiency.

Engineering Solution: Engineers combat wear and abrasion through the use of high-performance stainless steel alloys with enhanced hardness, wear resistance, and surface treatments. Advanced manufacturing techniques, such as nitriding and ceramic coatings, further enhance the durability and longevity of cylinder liners, mitigating wear and extending service life.

Material Degradation

Challenge: Despite their inherent corrosion resistance, stainless steel cylinder liners can still be susceptible to degradation in corrosive environments or under extreme operating conditions. Material degradation can compromise structural integrity, leading to leaks, reduced performance, and premature failure.

Engineering Solution: Selection of corrosion-resistant stainless steel grades and implementation of protective surface treatments and coatings help mitigate material degradation and corrosion. Regular inspection, maintenance, and monitoring of cylinder liners ensure early detection of any signs of degradation, allowing for timely corrective actions to be taken.

Conclusion

Sealed stainless steel cylinder liners represent a pinnacle of engineering excellence, offering exceptional performance, durability, and reliability in modern engines. While they face challenges such as thermal expansion mismatch, sealing integrity, wear, and material degradation, engineers employ innovative design solutions, advanced materials, and manufacturing techniques to overcome these limitations. Through continuous refinement and improvement, sealed stainless steel cylinder liners continue to meet the rigorous demands of automotive, aerospace, marine, and industrial applications, driving innovation and excellence in engine design and performance.
