How to install Curtain Wall Profiles

Installing curtain wall profiles involves several key steps, typically within the context of a building's façade system. Curtain walls are non-structural cladding systems for external walls, often made of aluminum frames and glass or panels. Below is a general guide for installing curtain wall profiles:

Tools & Materials Needed

Curtain wall system components (mullions, transoms, brackets, glazing, gaskets, etc.)

Drill and anchors

Laser level or plumb line

Measuring tape

Screwdrivers or rivet gun

Sealant gun

Safety gear (harnesses, helmets, gloves)

Curtain Wall Profile Installation Steps

1. Survey & Preparation

Verify building structure is ready (ensure alignment and dimensions are correct).

Lay out the grid and reference lines using laser levels or plumb lines.

Prepare the anchoring surfaces, removing debris and fixing uneven spots.

2. Install Vertical Mullions (Main Profiles)

Begin with the base bracket installation.

Mount vertical mullions to the building structure using anchor bolts.

Use spacers and shims to adjust for vertical alignment and plumb.

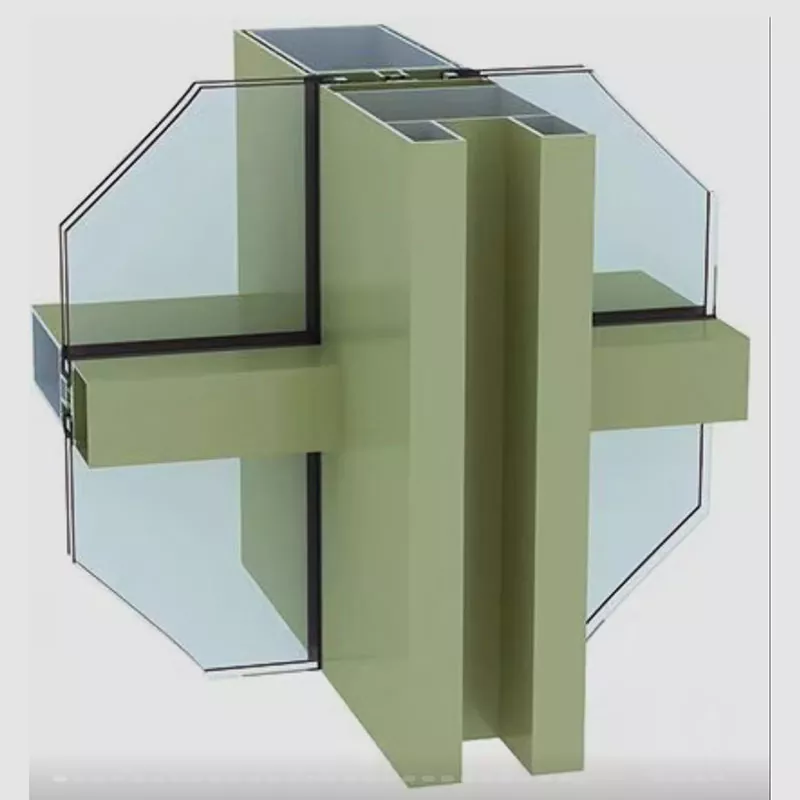

3. Install Horizontal Transoms

Fix transoms (horizontal profiles) between mullions.

Use mechanical connectors or brackets provided by the curtain wall system.

Ensure spacing matches panel or glazing dimensions.

4. Seal Joints & Apply Gaskets

Install rubber gaskets into mullion and transom grooves.

Apply structural silicone or sealant as per the manufacturer’s specs.

5. Glazing or Panel Insertion

Place glass panels or infill materials into the frame.

Use pressure plates or caps to secure glazing.

Install weatherproofing seals and apply finishing sealant.

6. Final Adjustment & Inspection

Check alignment, level, and plumb of the installed system.

Tighten all fasteners.

Conduct water and air infiltration tests if required.

Tips

Always follow the manufacturer's installation manual—systems can vary.

Ensure thermal breaks are intact and not compromised during installation.

Maintain tolerances for movement and thermal expansion.
